Test PV systems up to 1500 V safely and easily with the BENNING PV 125

The latest generation of PV modules focuses on higher efficiencies and capacities. This presents new challenges for measurement technology. With the BENNING PV 125, we present an installation tester specifically developed for these requirements, masterfully handling measurements up to 1500 V (Uo/c) and 25 A (Is/c).

Safe and standard-compliant testing

The BENNING PV 125 enables standard-compliant testing according to DIN EN 62446-1 (VDE 0126-23-1) and DIN EN 62446-2 (VDE 0126-23-2). Thanks to intuitive AUTO test sequences, you can perform measurements of polarity, open-circuit voltage, short-circuit current, and insulation resistance in just a few seconds.

Performance features at a glance

• Powerful: Measurements up to 1500 V DC and 25 A DC.
• Efficient: Internal measured value memory for 1000 auto measurements, organized by object, inverter, and string.
• Modern: Intuitive color display, Bluetooth® and LoRa wireless interface, and OTA updates.
• Robust: High-quality Li-ion battery pack including charging cradle for intensive use.

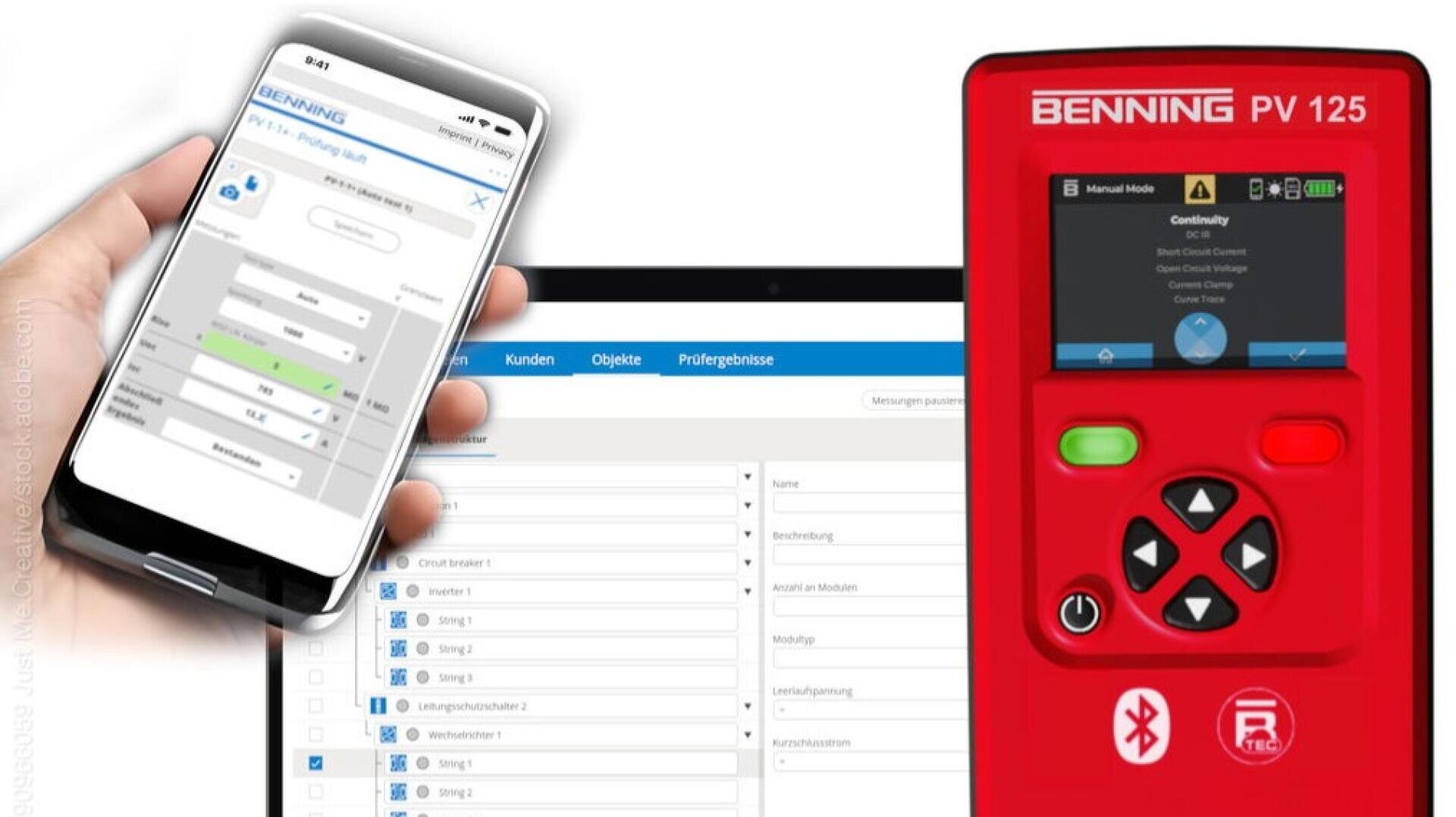

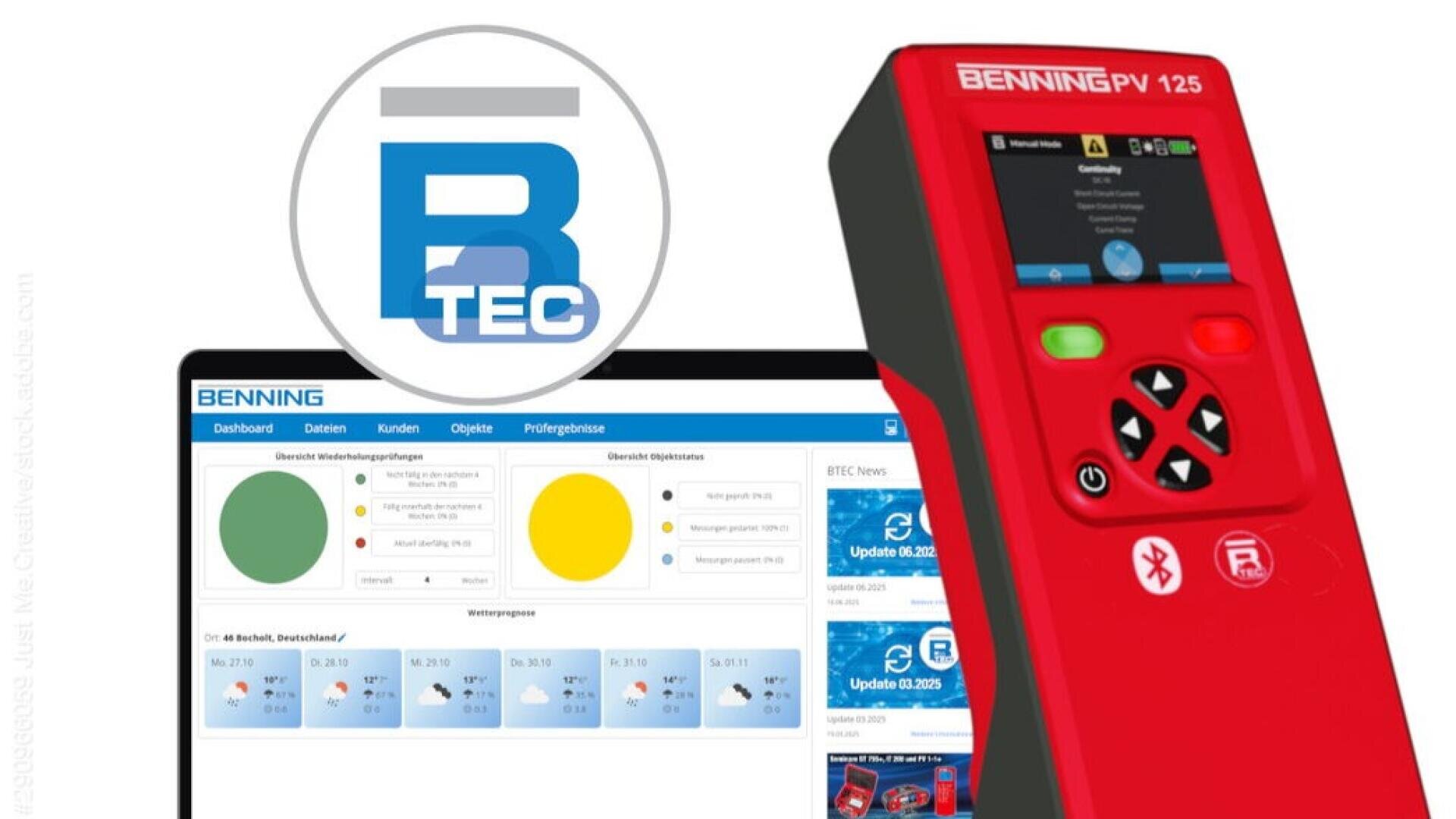

Efficient documentation with the BENNING Test Equipment Cloud (BTEC)

In combination with the new BENNING Test Equipment Cloud (BTEC), your documentation becomes easier than ever before. The cloud solution optimizes your testing processes, simplifies data management, and makes your workflows significantly more efficient. For a quick start, we offer you free cloud access with basic functions.

Extended diagnostic possibilities

For more in-depth analysis, the PV 125 can be optimally combined with the BENNING CM 3-PV digital clamp multimeter or the BENNING SUN 3 insolation and temperature measuring instrument. This allows you to keep track of all relevant parameters of your PV system at all times.

Visit us at the Powertage and experience the BENNING PV 125 live in action!
